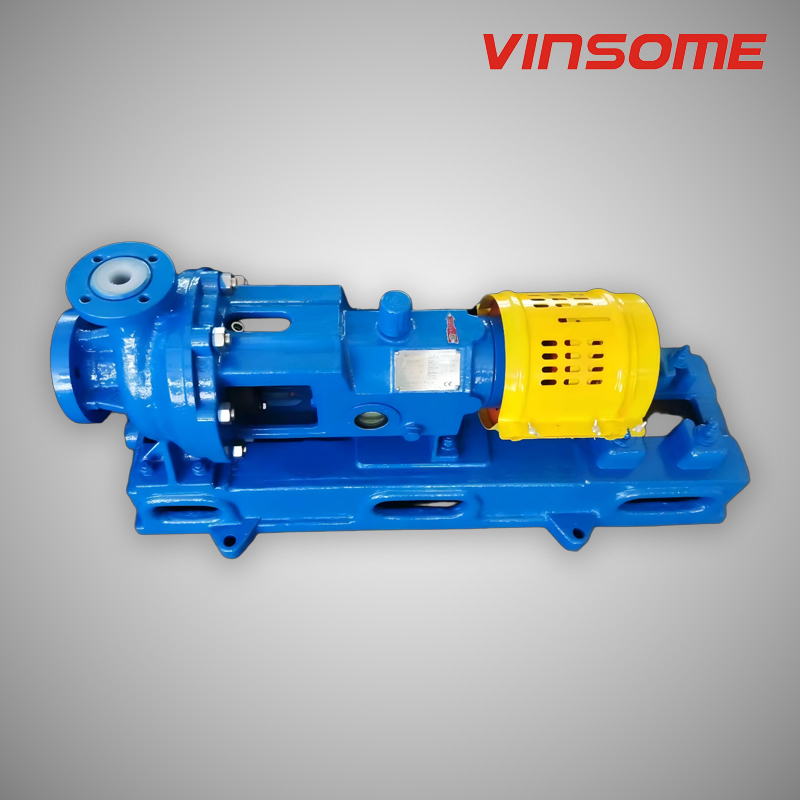

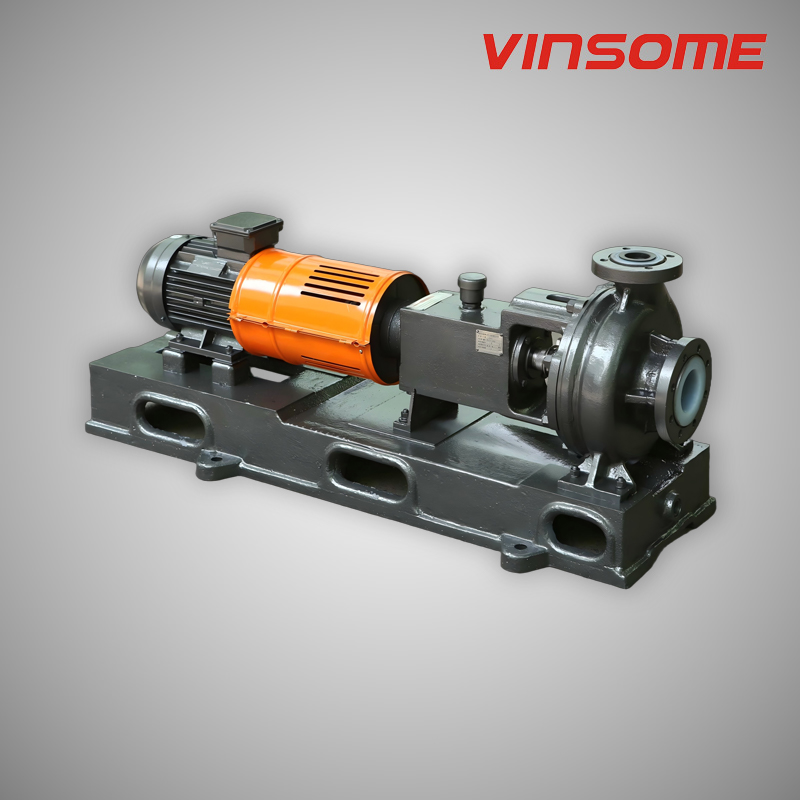

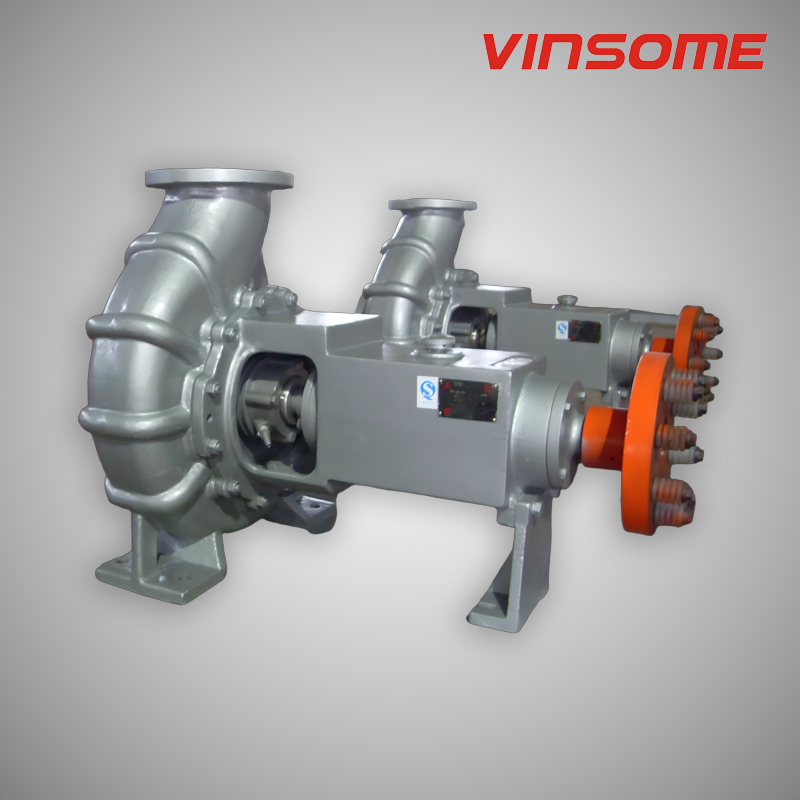

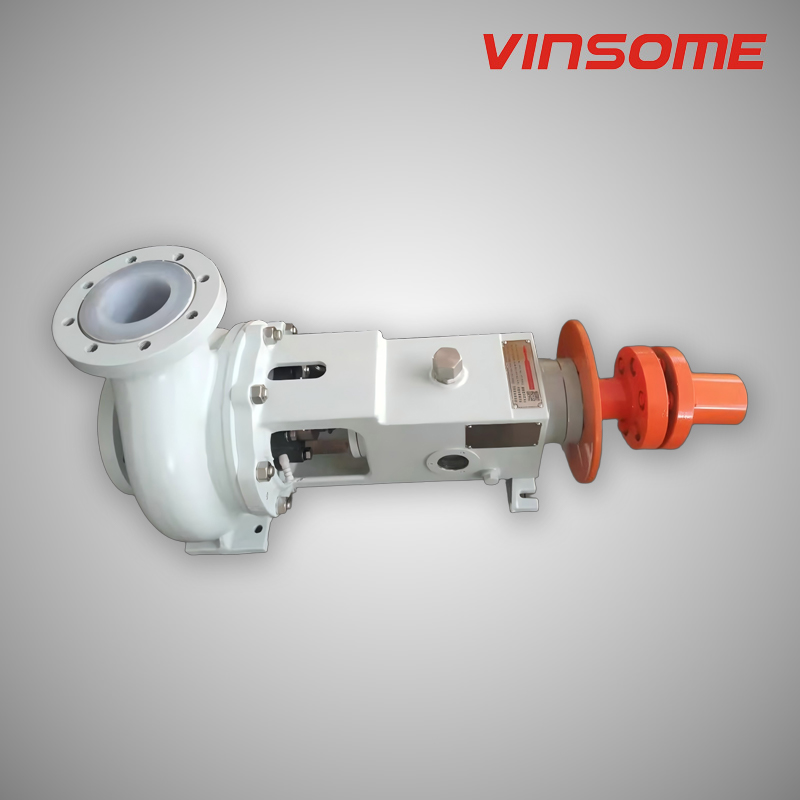

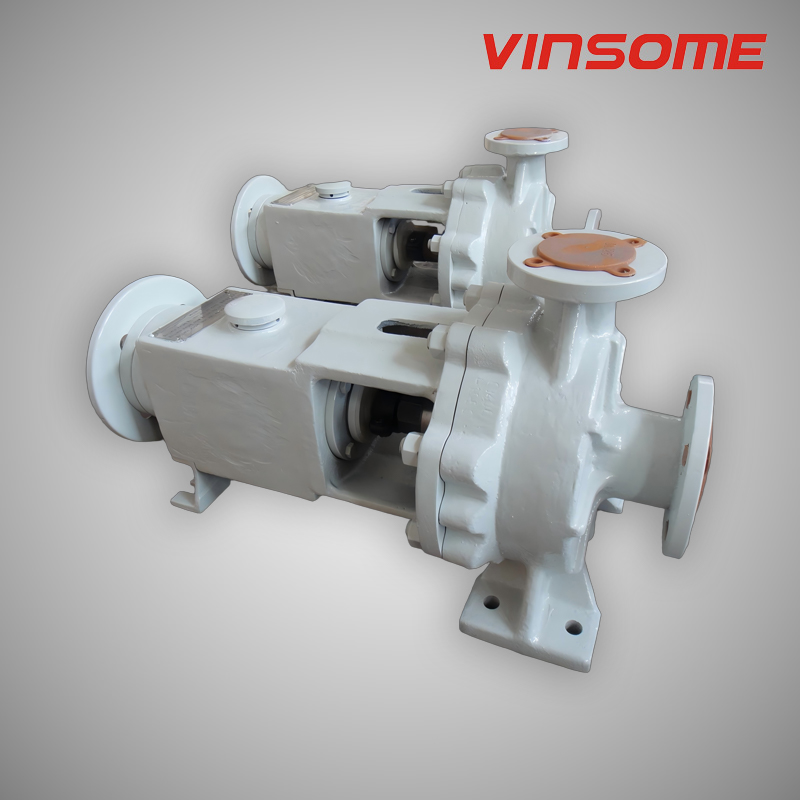

IFK series Teflon-lined with metal reinforced chemical centrifugal pump is designed according to ISO2858. The pump is a horizontal, single-stage, radial split volute casing, Teflon-lined lined with a metal reinforced centrifugal pump, with foot support, a single-entry radial Semi-Open impeller, an end-suction branch, and a radial upwards discharge branch.
The motor drives the pump through the flexible disc coupling directly.
Pump inlet | DN40-DN250 mm |
| Pump outlet | DN25-DN200 mm |
| Capacity Q range | 3 m3/h-600 m3/h |
Head H range | 5m-80m |
Operating speed | 50Hz or 60Hz, VFD |
| Working Temperature Range | -20℃ to 175℃ |
| Operating Pressure | ~1.6 MPa |
>Pump casing: Teflon-lined with metal reinforcement
>Pump flange standard:DIN2501,ISO7005,ASME B16.5
>The suction and discharge fange, the casing, and the pump foot are all cast as a whole.

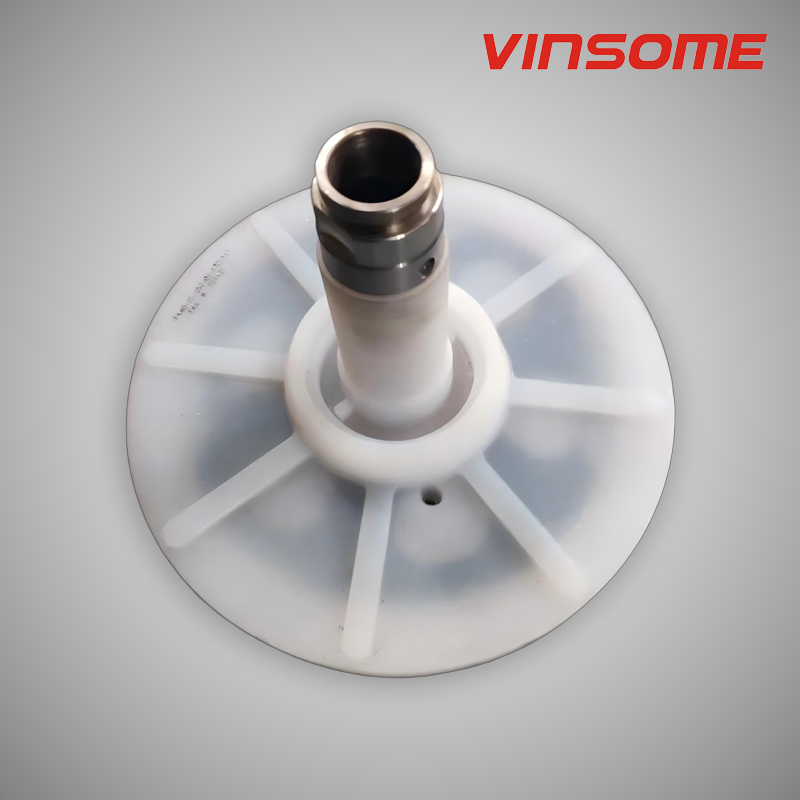

>Impeller: Teflon Lined with metal reinforcement, Semi-Open type.
>Bearings: Heavy-duty bearings, lubricated by oil (Grease as an option)
>Shaft seal: Externally mounted Teflon bellow mechanical seal.
>Coupling: The motor drives the pump through the flexible coupling directly.
1. Are you a factory or a trading company?
A: We are a professional service provider of customized complete solutions in the field of fluid machinery and fluid engineering.
2. What are your payments?
A: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
3. What about the package?
A: Standard exportation packaging with a polywood box.
4. How about the delivery time?
A: 30~90 days, depending on quantity and season.
5. How about the MOQ?
A: 1 set.
6. How about the quality guarantee?
A: One year after commissioning or 18 months after delivery.
