Industrial pumps must meet strict explosion-proof standards. This is especially important in hazardous environments, such as chemical plants and oil fields. Proper coupling alignment is important to keeping them running smoothly over time. But traditional alignment methods have issues. These can cause vibration, bearing damage, or even equipment failure due to various reasons.
New coupling alignment technology significantly enhances pump set reliability and reduces maintenance costs. This article by Vinsome will analyze the core elements of this technology.
During operation, pumps and motors expand due to temperature increases. If thermal expansion is not accounted for after alignment at ambient temperature, coupling misalignment may occur during operation, leading to vibration or mechanical failure.
To address this, thermal expansion compensation must be pre-calculated and accounted for during installation based on equipment materials and operating temperatures. Immediately after initial startup and before cooling, recheck the alignment status to ensure thermal expansion has not caused excessive deviation.
Best practice involves dynamic monitoring using laser alignment instruments or dial indicators to ensure alignment accuracy meets standard requirements.
Alignment Methods
Although the pump was likely aligned at the factory, it is most likely that this alignment has been disturbed during transportation or handling. If necessary, align the motor to the pump, not the pump to the motor.

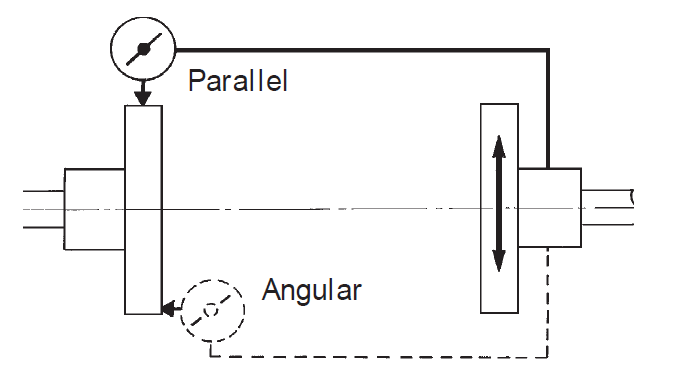

For couplings with narrow flanges use a dial indicator as shown. The alignment values are maximums for continuous service.
The target center accuracy should be controlled within 0.05–0.075 mm (0.002–0.003 inches) to minimize vibration.
Reduce Vibration: Prevent abnormal vibrations caused by shaft misalignment.
Minimize Wear: Prevent premature damage to bearings, seals, and couplings.
Enhance Efficiency: Ensure efficient energy transfer and reduce power loss.
Extend Service Life: Avoid equipment fatigue failures caused by misalignment.
Complies with Safety Standards: Meets ISO 12100, EN 953, and explosion-proof environment requirements.
This new coupling alignment technology delivers full-lifecycle reliability assurance for industrial pump sets. Proper implementation of these methods maximizes equipment performance, reduces the total cost of ownership, and ensures long-term stable operation of production systems.
