HIJ
Dongguan Vinsome
| Availability: | |
|---|---|
| Quantity: | |

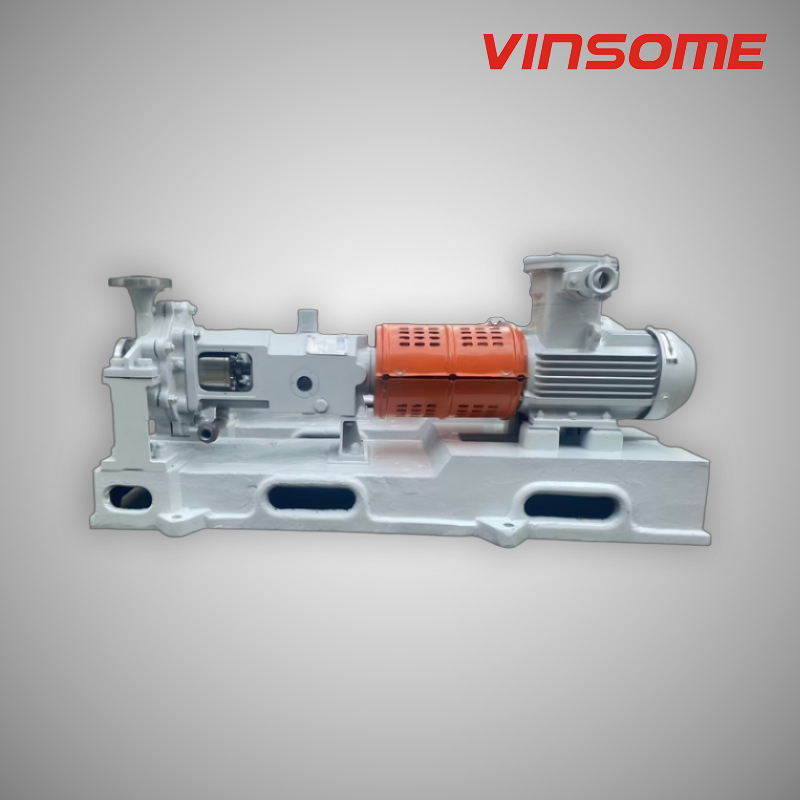

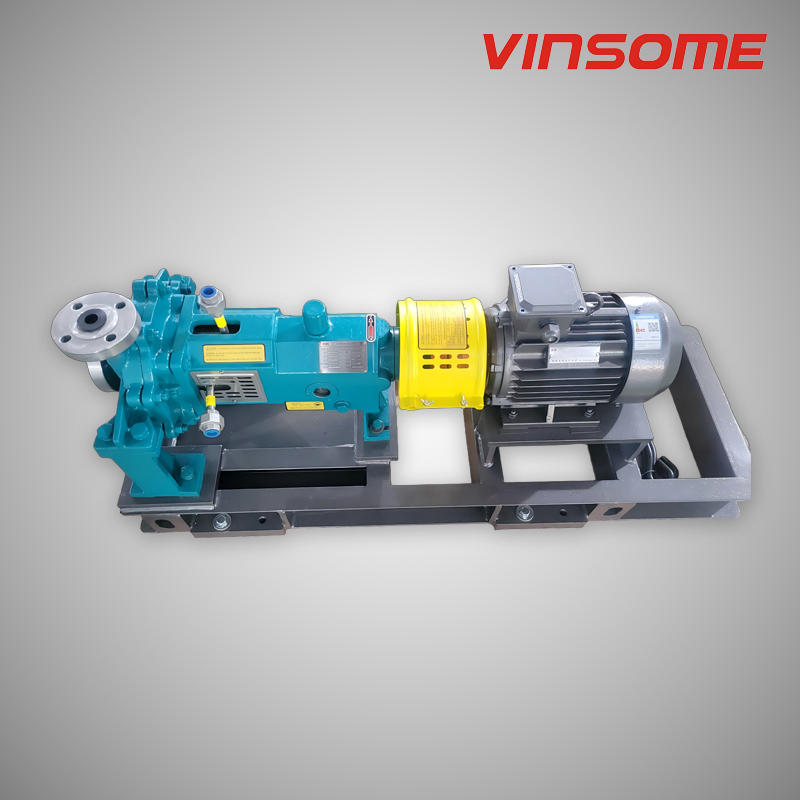

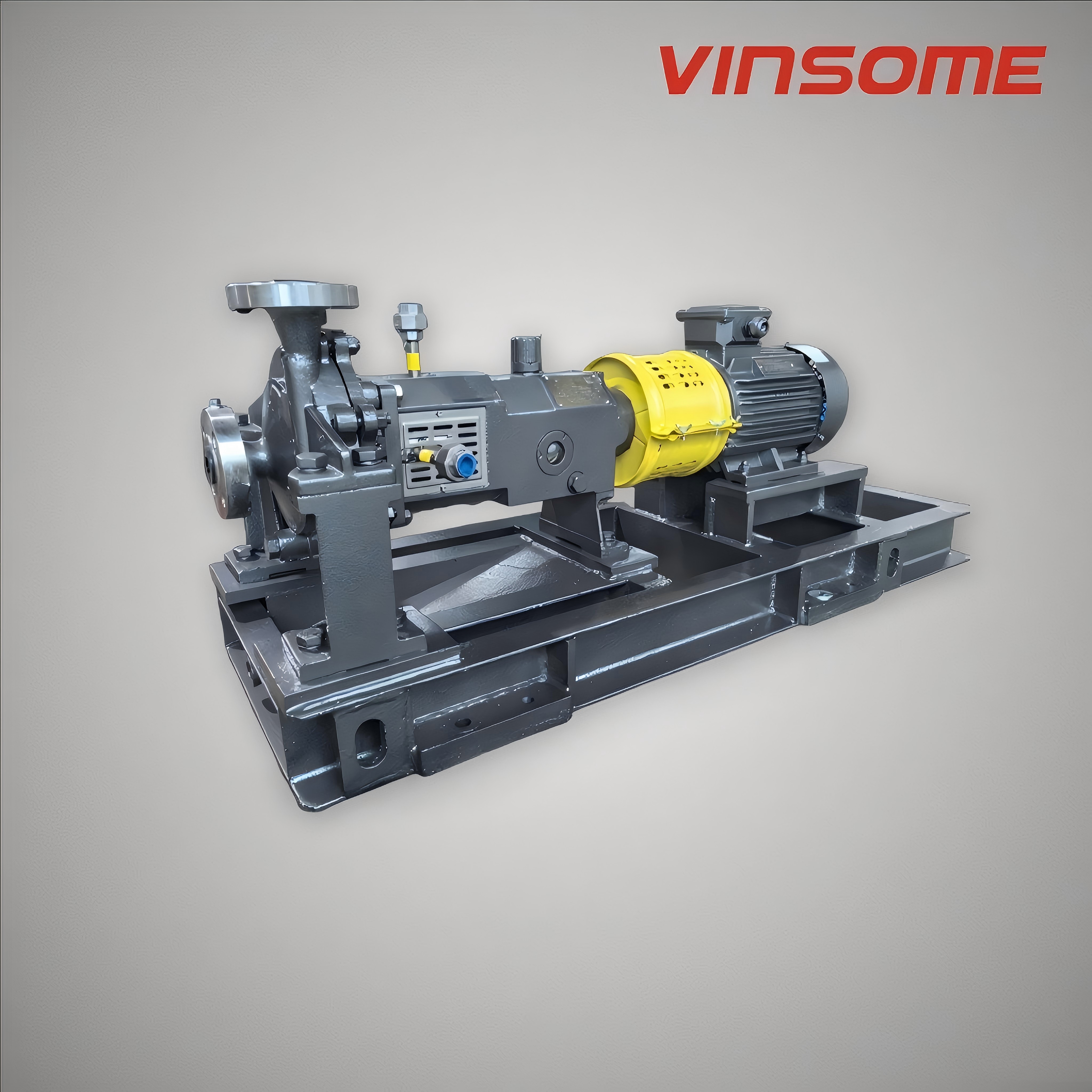

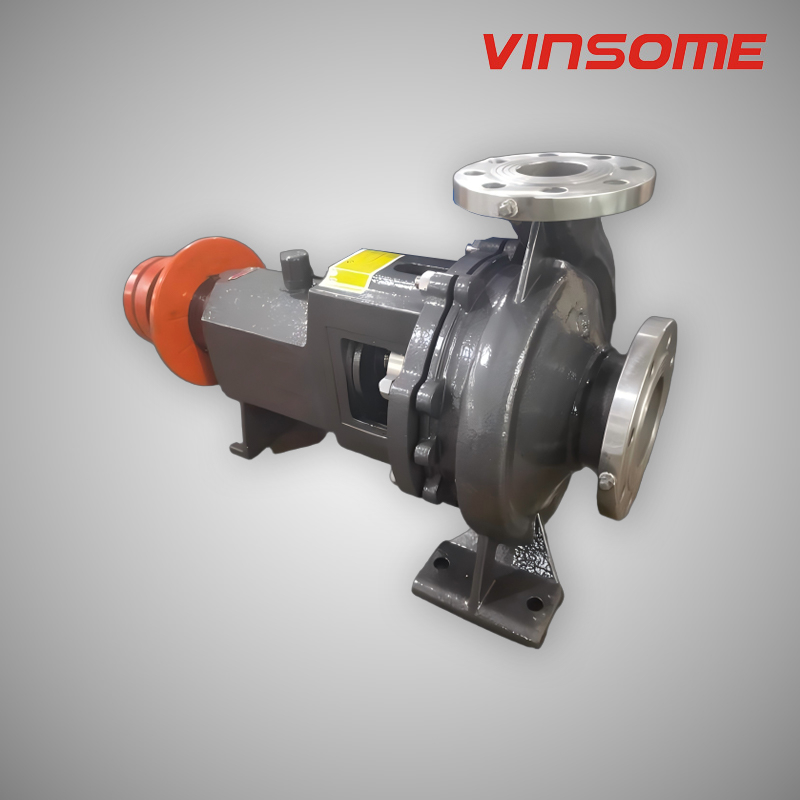

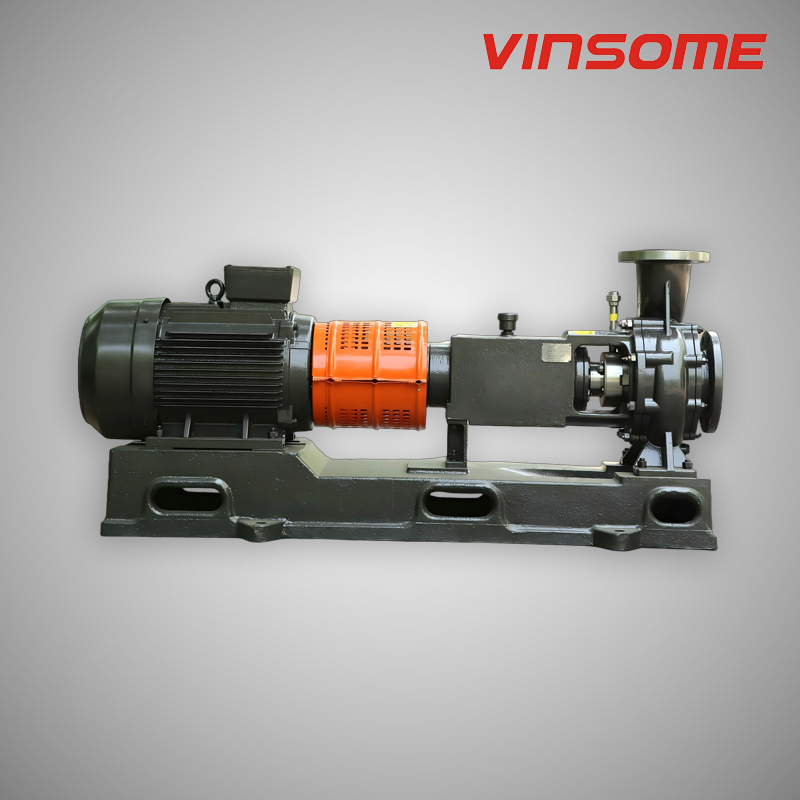

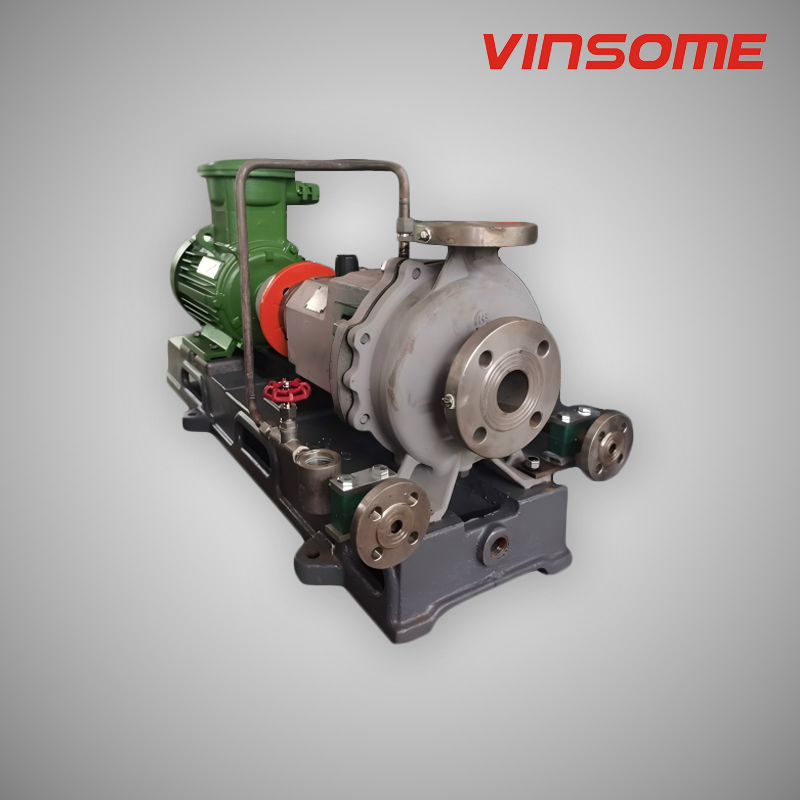

HIJ type standard chemical process pump is a horizontal,single-stage,single-suction,radial-split centrifugal pump with its dimensions and performance in compliance with ISO 2858. Both efficiency and cavitation performance of HJ type exceed those of IH pumps. Type HJ can be interchanged with the IH type.
The pumps are designed to transfer clean or liquid containing particles, easily crystallize and precipitate working conditions.
Pump Suct. Size | DN40-DN450 mm |
| Pump Disc. Size | DN25-DN400 mm |
| Capacity Q range | 0.8 m3/h- 2500 m3/h |
Head H range | 4m-250m |
| Working Temperature Range | -30℃ to 175℃ |
| Operating Pressure | ~2.5 MPa |
>End suction/Top discharge casing is self-venting
>Standard modularization design, that is, an assembly module unit composed of a bearing bracket, shaft,stuffbox and impeller, and reduces maintenance costs.
>The rear pul-out design enables the bearing pedestal, including impeller and shaft seal, to be removed with the volute casing left in position.The removal of the driver can be avoided if a spacer coupling is used.
>The interchangeable modular elements for various sizes. There is high interchangeability to a reduced number of components, efficient high quality manufacture, and easier spare part stock keeping.
1. Are you a factory or a trading company?
A: We are a professional service provider of customized complete solutions in the field of fluid machinery and fluid engineering.
2. What are your payments?
A: L/C, T/T, D/P, PayPal, Western Union, Small-amount payment
3. What about the package?
A: Standard exportation packaging with a polywood box.
4. How about the delivery time?
A: 30~90 days, depending on quantity and season.
5. How about the MOQ?
A: 1 set.
6. How about the quality guarantee?
A: One year after commissioning or 18 months after delivery.
